Builders Line Compact Hinge, 1-1/4" Overlay With Dowels, Soft-Close, 4 Way 2 Cam Adjustable, Face-Frame

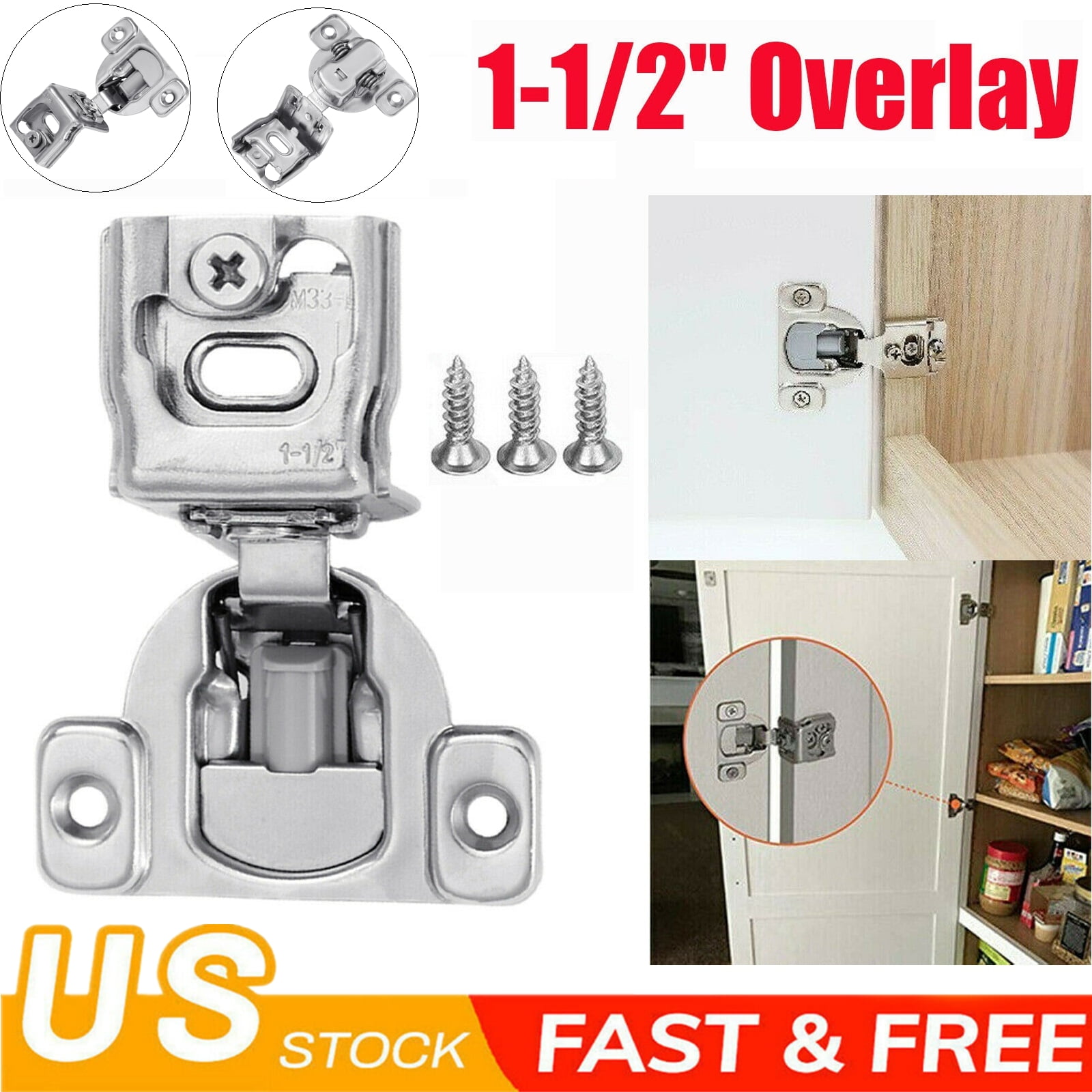

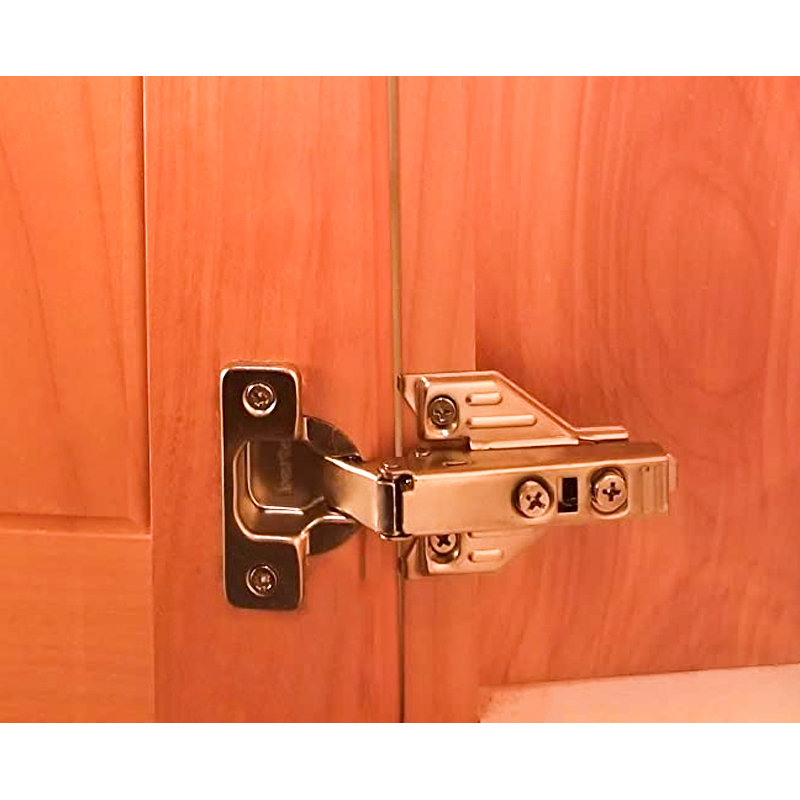

In this video, you can find all the step-by-step details for the correct assembly of the hinges. This was made by Berta Hardware to make our DIY customers' jobs easier. Check and choose suitable size for your cabinets. There are 7 different sizes of Face Frame cabinet hinges in our catalog. They are similar to each other. The only difference is the overlay sizes. The hinge of an image is a 1 1/2-inch overlay. The hinge of an image is a 1 1/4-inch overlay. 3-Cam Adjustment: Easiest to install and can be easily adjusted with the turn of a screwdriver. Depth, Side and Height adjustment functions will make sure that your new custom-made cabinet doors don't sag, align correctly. Specifications: CUP DIAMETER: 35 mm (1-2/5). DEPTH OF CUP: 11 mm (2/5). Soft-Closing: The hydraulic soft-close silent system is built into the hinge; the cabinet door will close slowly even you slam the door. It also puts less stress on cabinet door hinges, greatly extending the life of your cabinet. Why Berta: Product quality and customer satisfaction is our top priority.
